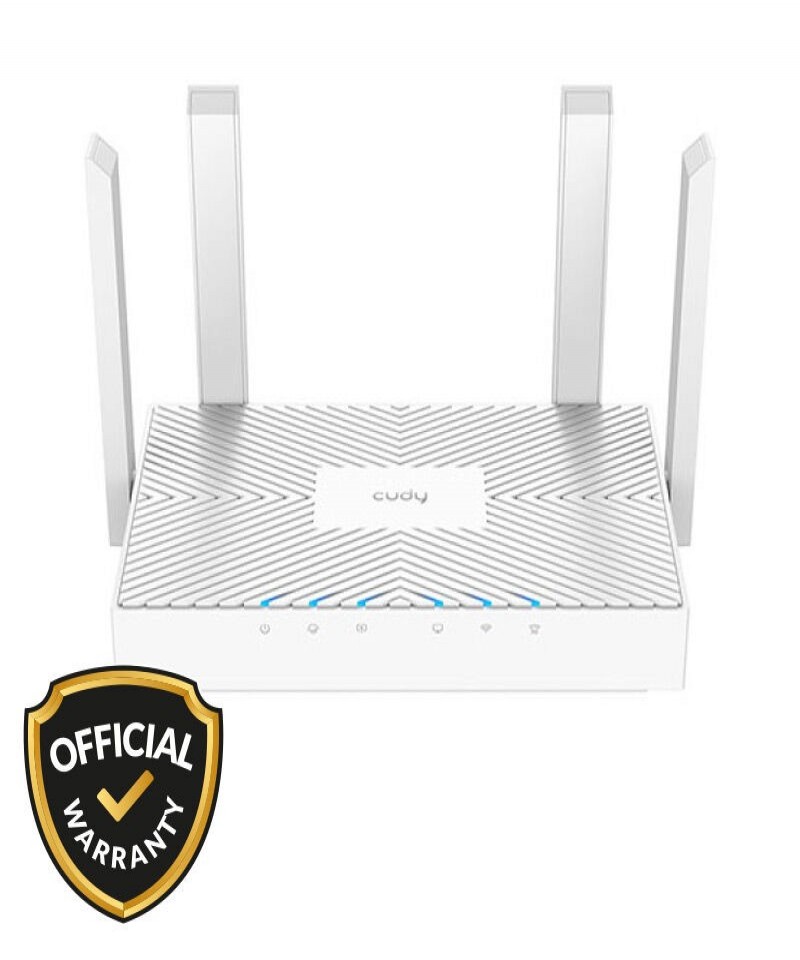

Key Features & Specifications of Cudy WR1300E AC1200 Gigabit Dual Band Wi-Fi Router

Key Features:

• 4-Stream Dual-Band Wi-Fi 5

• 3× Gigabit Ethernet Ports

• 4× High-Gain Antennas

• Up to 50 Connected Devices

• Covers 100m² (1,100 ft²)

• Router/AP/RE/WISP/Client Modes

Specifications:

CPU:

• Chipset: MT7621

• CPU Details: 880 MHz Dual-Core, MIPS1004Kc

Memory/Storage:

• Flash/ROM: 8 MB (64 Mbit) NOR

• DDR/RAM: 128 MB (1 Gbit) DDR3

Wireless:

• 5 GHz Wi-Fi Speed: 867 Mbps

• 4 GHz Wi-Fi Speed: 300 Mbps

• 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

• 4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

• Wi-Fi Antennas: 4× Fixed

• 5 GHz Antenna Gain Max: 5.99dBi

• 4 GHz Antenna Gain Max: 5.24dBi

• FEM or PA/LNA: 5 GHz: 2× External | 2.4 GHz: 2× Internal

• Beamforming: True

• Range Performance Max: 170 m (558 ft)

• Wall Performance: Two wooden walls with Thickness < 10 cm (4'')

Interfaces:

• Gigabit RJ45 Ports: 3

• Ethernet Notes: 1× WAN port, the rest are LAN ports

• LED: System | Internet | WPS | LAN | 2.4 GHz Wi-Fi | 5 GHz Wi-Fi

• Physical Buttons: WPS Button | Reset Button

Power:

• Power Methods: DC

• DC: 12V 1A

• Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC

• Power Adapter Output: 12V 1A DC

• Max Power Consumption (W): 7.5W

Reliability:

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)

• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)

• Humidity: 10% ~ 90% non-condensing

• Storage Humidity: 5% ~ 95% non-condensing
