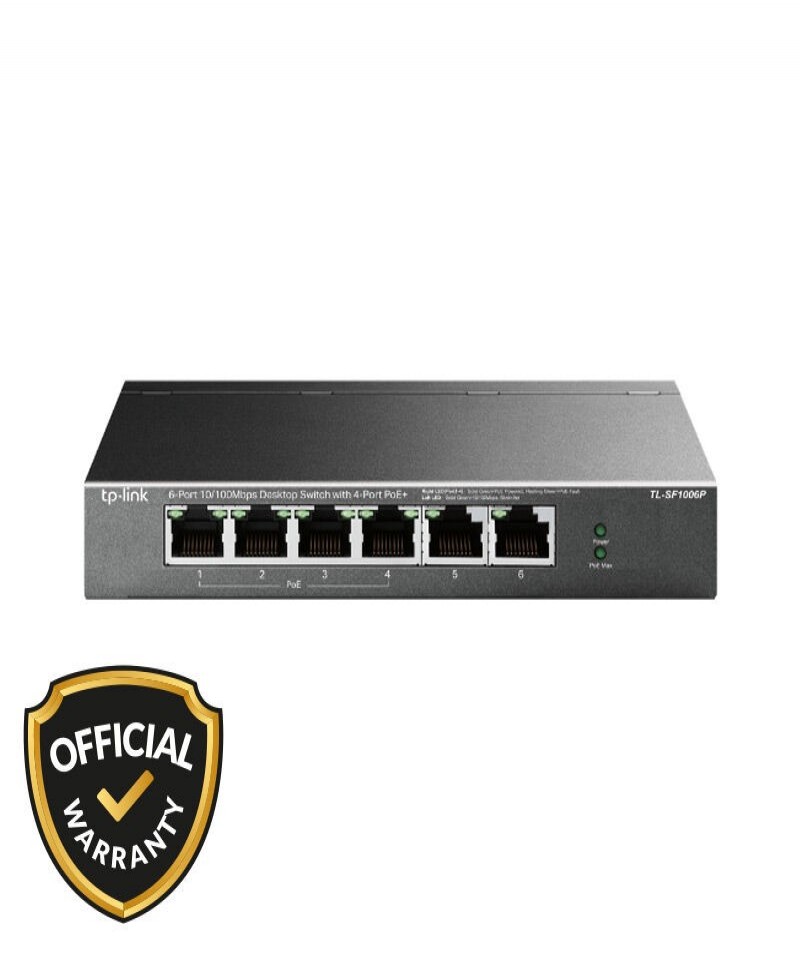

Key Features & Specifications of TP-LINK TL-SF1006P 6-Port 10/100Mbps Desktop Switch

Key Features

• PoE+ Power

• Extend Mode

• Priority Mode

• Plug and Play

• Power Management

• Durable Build Quality

• Wide Compatibility

Specifications:

Hardware Functions:

Interface:

• 6× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af/at PoE+)

• Auto-Negotiation

• Auto MDI/MDIX

Network Media:

• 10BASE-T: UTP category 3, 4, 5 cable (max. 100m)

• EIA/TIA-568 100Ω STP (max. 100m)

• 100BASE-TX: UTP category 5, 5e cable (max. 100m)

• EIA/TIA-568 100Ω STP (max. 100m)

• Fan Quantity: Fanless design

• Physical Security Lock: Yes

External Power Supply:

• Output: 53.5 V DC / 1.31 A

PoE Ports (RJ45):

• Standard: IEEE 802.3 af/at compliant

• PoE Ports: Ports 1–4

• Power Supply: 67 W

• Packet Forwarding Rate: 0.8928 Mpps

• MAC Address Table: 2K entries

• Jumbo Frame: 2 KB

• Switching Capacity: 1.2 Gbps

Max Power Consumption:

• 9 W (220 V / 50 Hz, no PD connected)

• 74 W (220 V / 50 Hz, with 67 W PD connected)

Max Heat Dissipation:

• 48 BTU/h (no PD connected)

• 34 BTU/h (with 67 W PD connected)

Software Functions:

Advanced Functions:

• Compatible with IEEE 802.3af/at Compliant PDs

• Extend Mode Button (Ports 1–4)

• Priority Mode Button (Ports 1–2)

• MAC Address Auto-Learning and Auto-Aging

• IEEE 802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode

• Transmission Method: Store-and-Forward

Others:

• Certifications: FCC, CE, RoHS

Environment:

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Dimensions (W x D X H):

• 2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
